| This
is our electric motor driven animatronic. Here is a
photo inside our graveyard. |
| |
|
Powered
by a rotisserie
motor mounted at the bottom of our |
| plywood
gravestone, our P. K. Boo skeleton slowly rises and
lowers. |
| |
|
These
pictures were taken a year after our animatronic was built
so |
|
detailed illustrations do not exist. We will gladly
answer any questions you may have. |
|
|
|
|
|
|
|
|

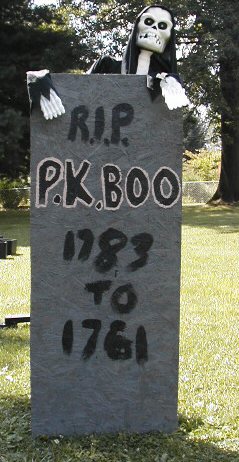

Here
is a closer view of our animatronic P.K. Boo. |
| |
| The
gravestone is simply a piece of plywood fastened to
another |
| piece
of plywood to make a 90 degree angle which allows it to |
|
stand upright. All of the electronic components are
mounted on the |
| back
on the piece of plywood that lays on the ground. |
|
|
|
|
|
|
|
|

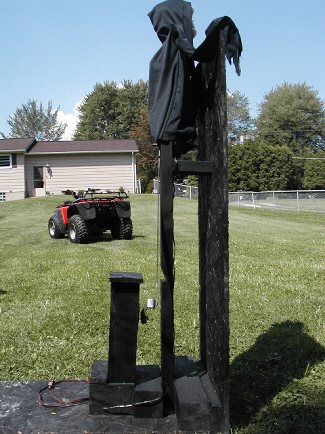

| From
the side, you can see how we attached the |
|
gravestone's plywood front to a piece of plywood that will
act as the |
| prop's
base. We had to experiment to get the correct |
| distance
from the motor shaft and linkage to move our |
| skeleton
the correct amount of length up and down. |
|
|
|
|
|
|
|
|
|

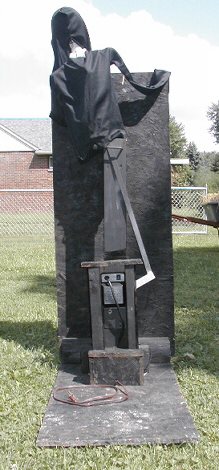

| From
behind, you can see how we mounted the rotisserie |
| motor
inside a wooden housing we constructed. We had to
leave |
|
enough space from the ground so that the swing arm didn't
hit bottom when |
| it
rotated underneath. |
|
|
|
|
|
|
|
|
|
|
| We
used the bracket that came with the rotisserie |
| motor.
It was a universal mount for gas grills. |
| |

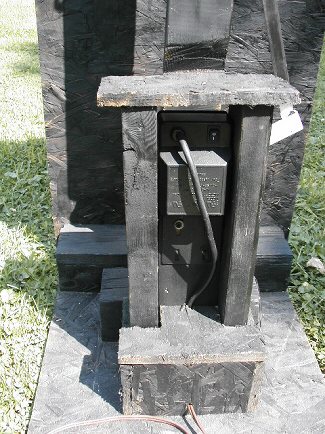

| Here
is a closer view of the motor from behind. |
|
|
|
|
|
|
|
|
|
|
|

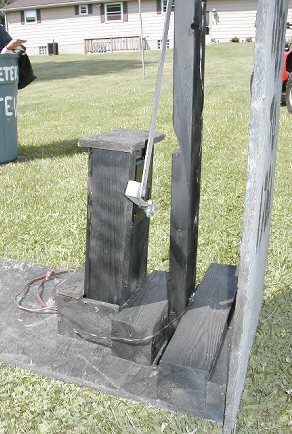

Here
is another view from the side. |
| |
| The
skeleton used in this prop was taken from a |
| battery
operated hanging/shaking skeleton device. |
| |
|
It was dismantled and 12 volt LED lights were placed in
the |
| eyes
for use in this prop. |
|
|
|
|
|
|
|
|

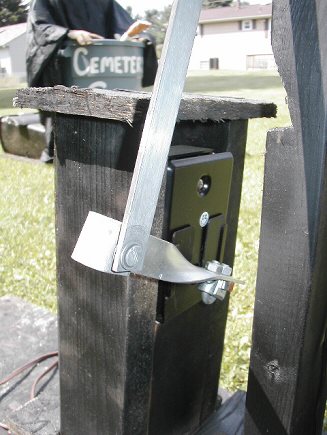

| Close
up of the motor from the front. The shaft was welded
with welding liquid inside |
| the
motor. It was the original rotisserie shaft that we
cut to the size we needed then |
| glued
inside the motor. We attached an arm to the motor
shaft using a C-type clamp. |
| |
| The
length of the shaft as well as the arms are important. |
|
|
|
|
|
|
|
|
|

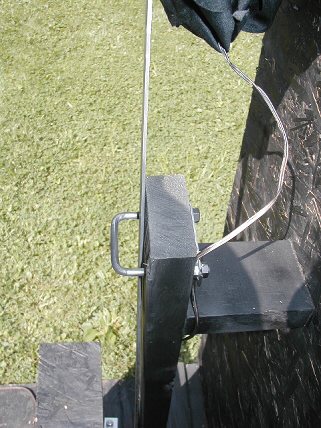

| This
is the upper portion of the arm where the skeleton is |
|
attached. We used a clamp to hold the arm in place,
but allowed |
| enough
room for it to move properly. |
|
|
|
|
|
|
|
|
|
|
|

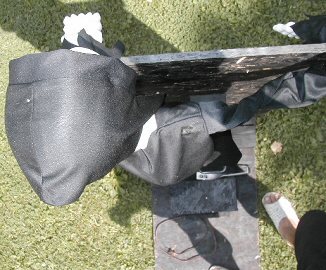

| From
above, the distance between the gravestone front |
| and
the motor mount can be seen. |
| |
|
We
had to make several different wooden structures |
|
before we got it right. If you need the dimensions
we used, |
| we
will gladly supply them for you. |
|
|
|
|
|
|
|
|
|
|
